ATU ATO ATC 287 257 PCB Mount Fuse Holder Clip Box Block 506J For Medium Blade Fuse

ATU ATO ATC 287 257 PCB Mount Fuse Holder Clip Box Block 506J For Medium Blade Fusese

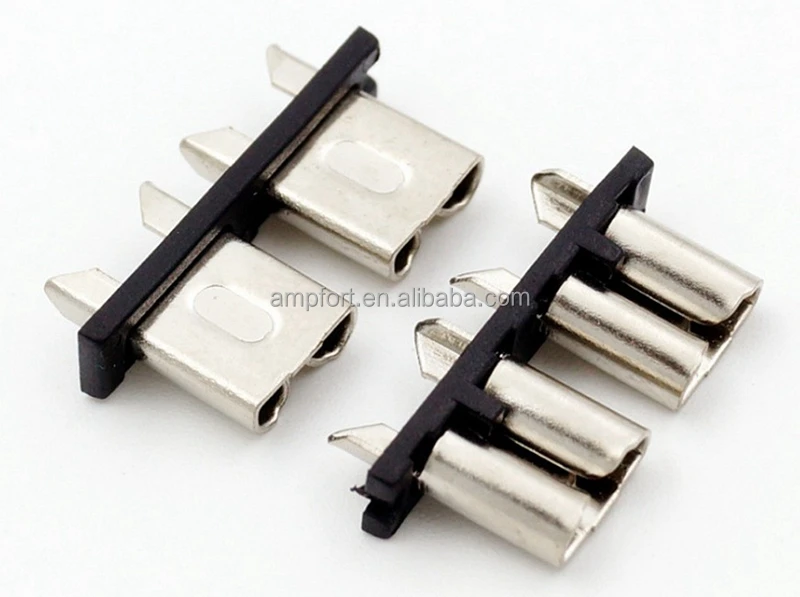

PCB Mount Fuse Clip is designed to hold and secure a ato blade fuse, providing a snug fit to prevent movement during operation. It is also specifically designed for PCB (Printed Circuit Board) mounting, allowing the fuse clip to be soldered directly onto the circuit board, providing a secure and reliable connection.

1. Easy Replacement: Fuse clips allow for easy and quick replacement of fuses. When a fuse blows due to overcurrent or a fault, it can be easily removed from the clip and replaced with a new one, minimizing downtime and reducing maintenance efforts.

2. Space-Saving: Fuse clips are compact and take up minimal space on the PCB compared to some other fuse holder types. This is especially important in small electronic devices and space-constrained applications.

3. Cost-Effective: Fuse clips are generally more cost-effective than traditional fuse holders, making them a budget-friendly choice for circuit protection.

4. Good Electrical Contact: Fuse clips are designed to provide secure electrical contact with the fuse's end caps, ensuring low resistance and reliable current flow through the circuit.

5. No Additional Components Required: Unlike some fuse holders that may require additional screws or locking mechanisms, fuse clips provide a simple, direct connection to the PCB.

6. Saves Assembly Time: The use of fuse clips in PCB designs can streamline the assembly process, as they are easy to install and don't require extra hardware.

7. Versatility: Fuse clips can accommodate various fuse types, such as cylindrical or tube fuses, providing flexibility in choosing the appropriate fuse for the application's requirements.

ATU PCB Mount Fuse Holder

506J PCB Mount Fuse Holder

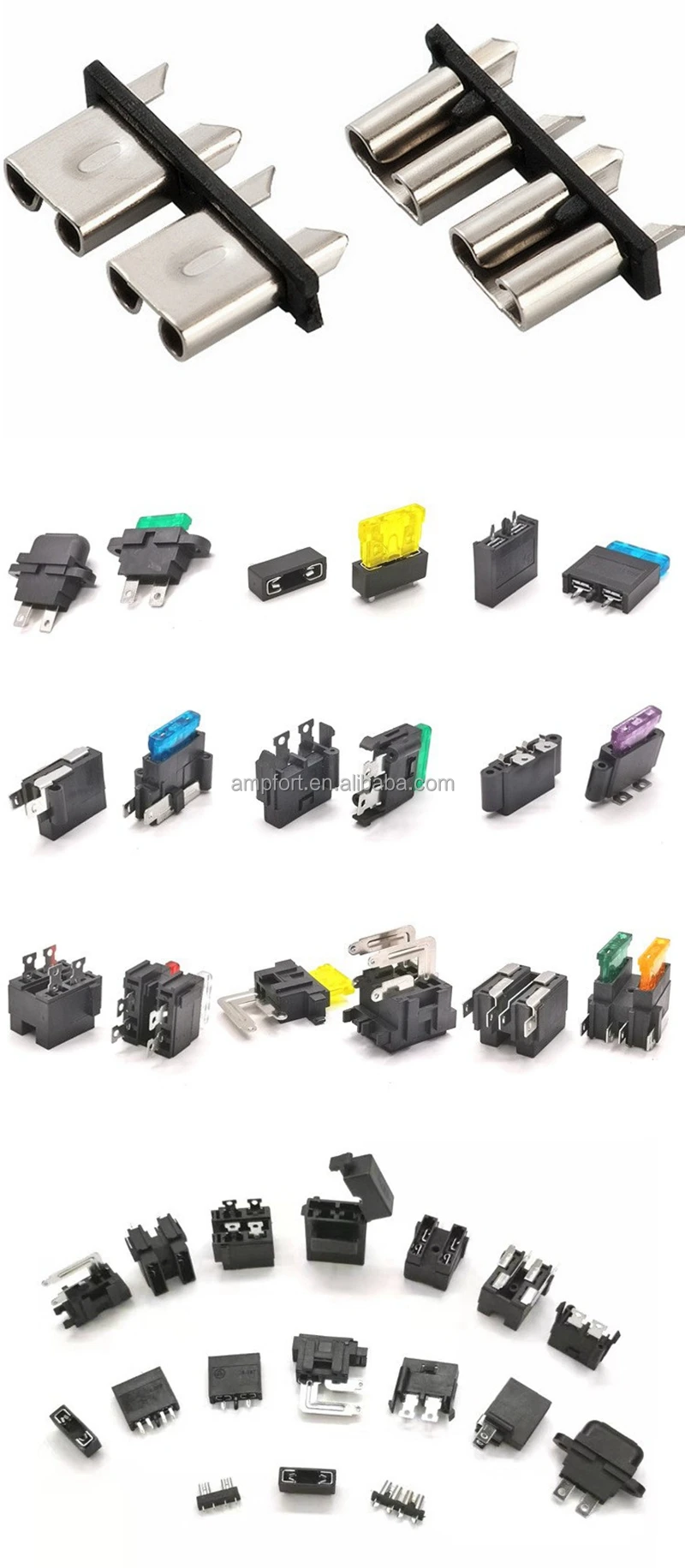

ATU ATO ATC 287 257 PCB Mount Fuse Holder Clip Box Block 506J For Medium Blade Fuse Images
